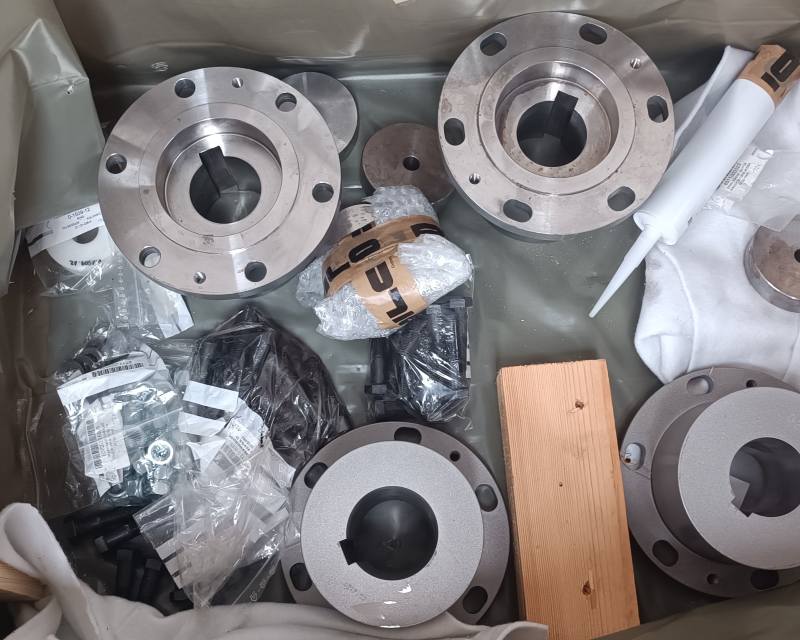

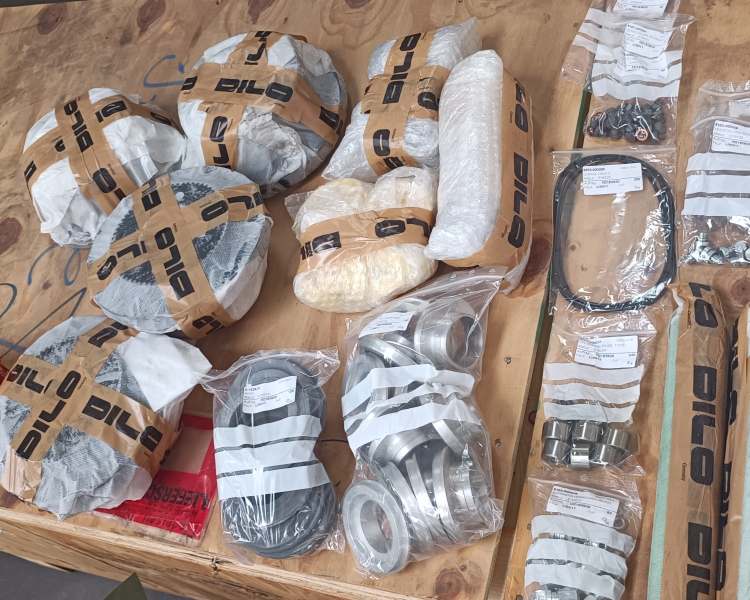

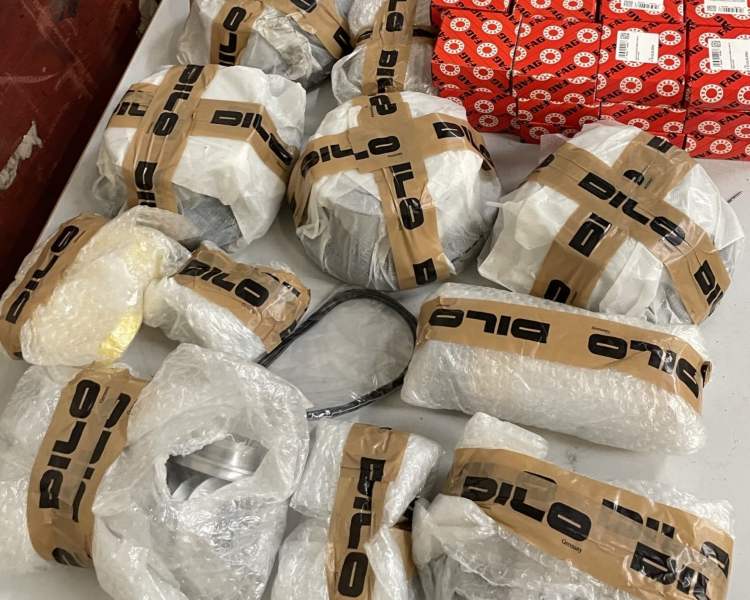

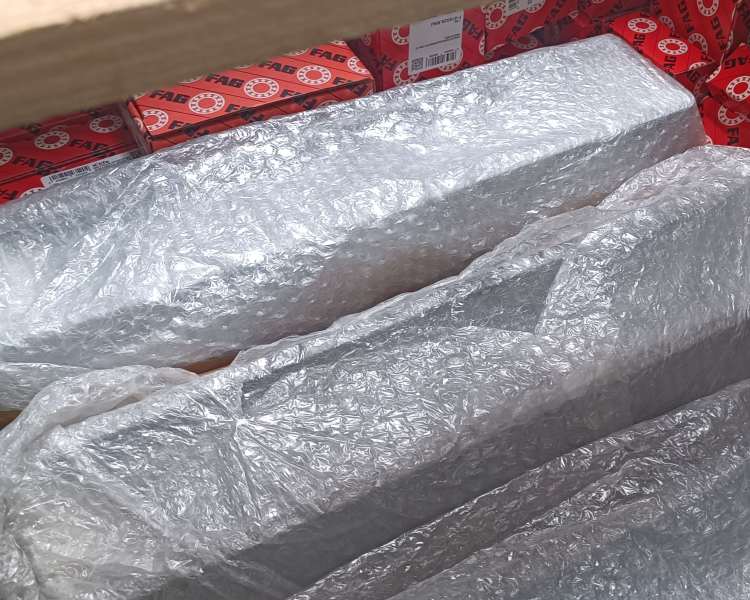

SET OF ORIGINAL NEW DILO SPARE PARTS

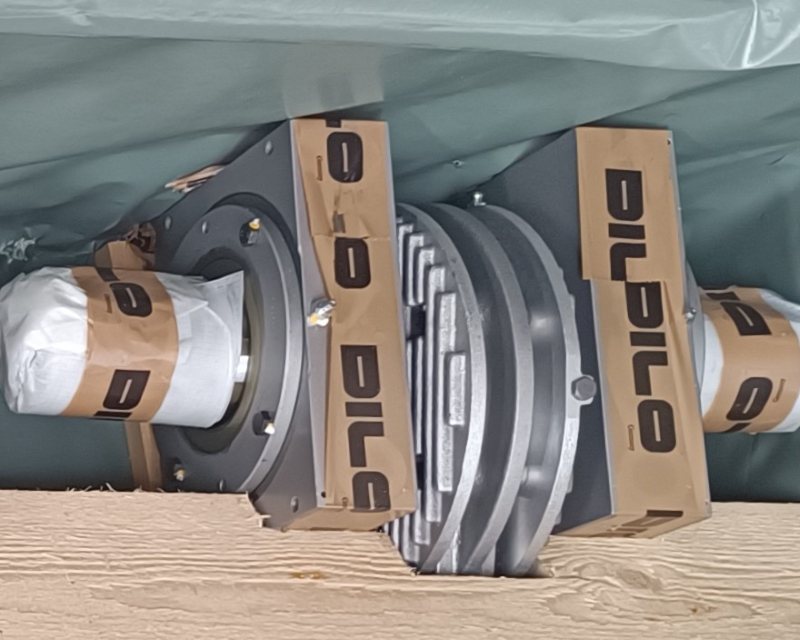

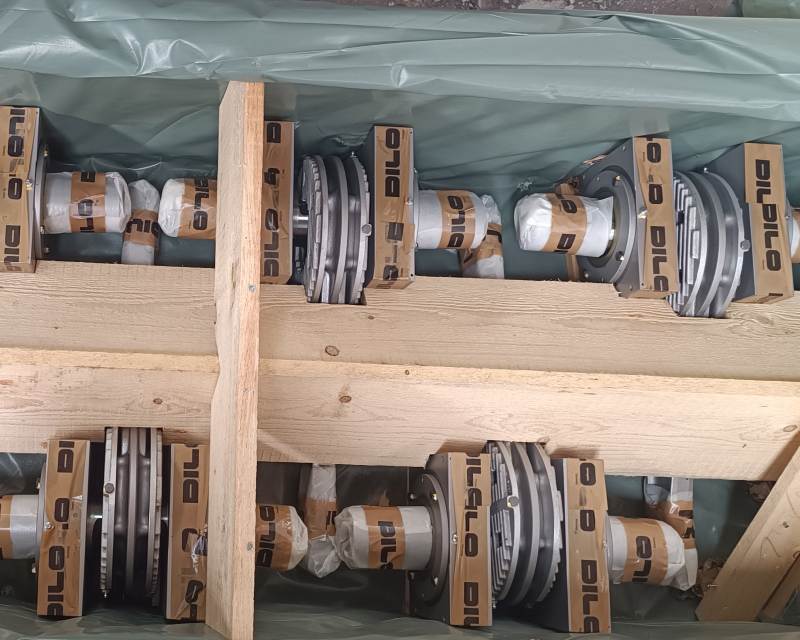

01 Complete Excentric Units 1-0835-77 6 pcs.
60mm Stroke
Replaces 1-0835-53
02 Washer 34×21,0x 5 6506-000001 24 pcs.
03 Grease nipple 1/BU M10x1 6360-000022 12 pcs.
04 Swivel Connection 6183-000646 12 pcs.
SWVE 6 LMCF ERMETO
05 Bolt for Rod DU.44,73×260 0-0131-12 6 pcs.
06 Screw DIN 7604 M 8x 1,0 6187-000201 24 pcs.
07 Ring CU AE 104.000 R 8x12x 1 6578-000016 24 pcs.
08 Cylinder roller bearing F-610320.RNU 6605-302307 24 pcs.
09 Sealing ring 45x80x 8 BA 6564-000053 24 pcs.
10 Sealing ring 45x62x 8 AD-BL-BN 6564-000041 24 pcs.
11 Ring DU.100/62×9 ORKOT 0-1529-01 12 pcs.
12 Cover DU.85×28 ALU 0-5390-07 12 pcs.
13 Screw Cover M55x1,5 NR.800 6399-000540 12 pcs.
14 Rubber bellow SIMIRIT 50 CR879 0-8419-11 6 pcs.
incl. accessories
15 Cylinder roller bearing RNU 313E.TVP2 6605-400313 12 pcs.
16 Toothed coupling FST 85 0-2477-09 4 pcs.
DU.213/118×137,5
17 Cover-screw with I-6KT. VSTI 10×1 6183-000439 8 pcs.
ED/A3C ERMETO
18 Cyl. Bushing 17×16 DIN 179 A 6963-000017 8 pcs.
19 O-ring 145×3,0 6573-000088 4 pcs.
20 Support 160x170x460 0-5387-31 3 pcs.
