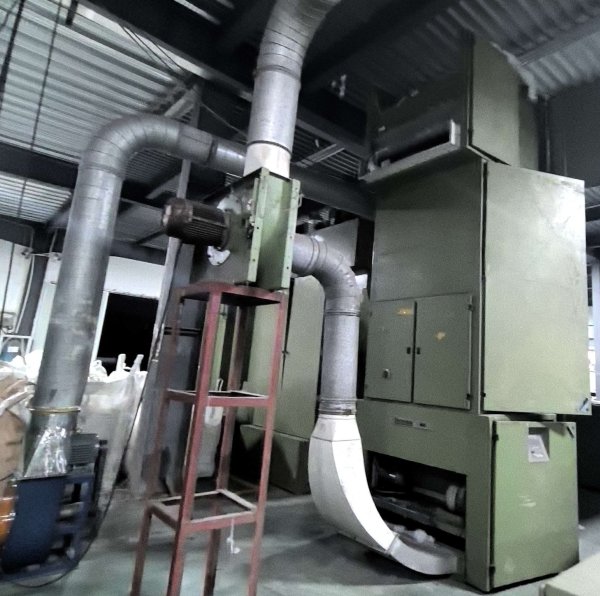

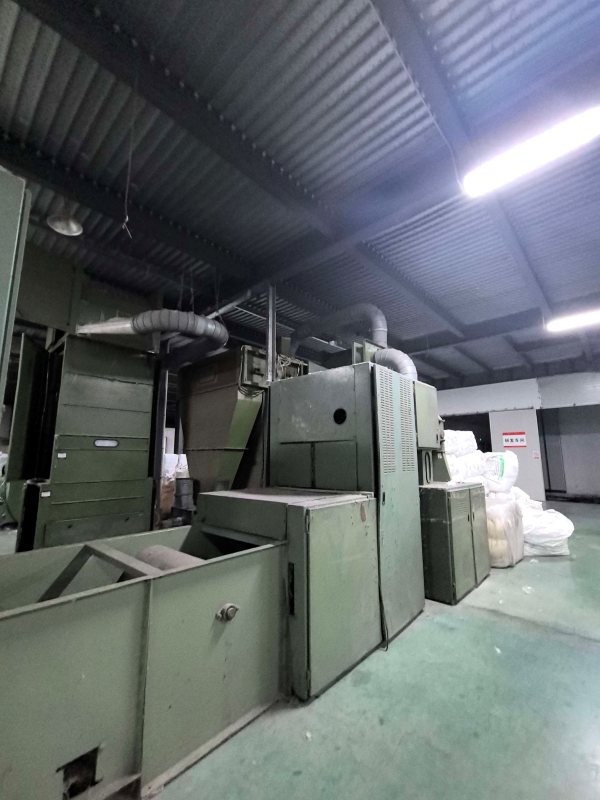

Fiber Preparation:
3x Bale Opener
with weigh pan feeding
Blender
2-bin pneumatic blending
Opener
pin roller Φ60mm
Feeding:

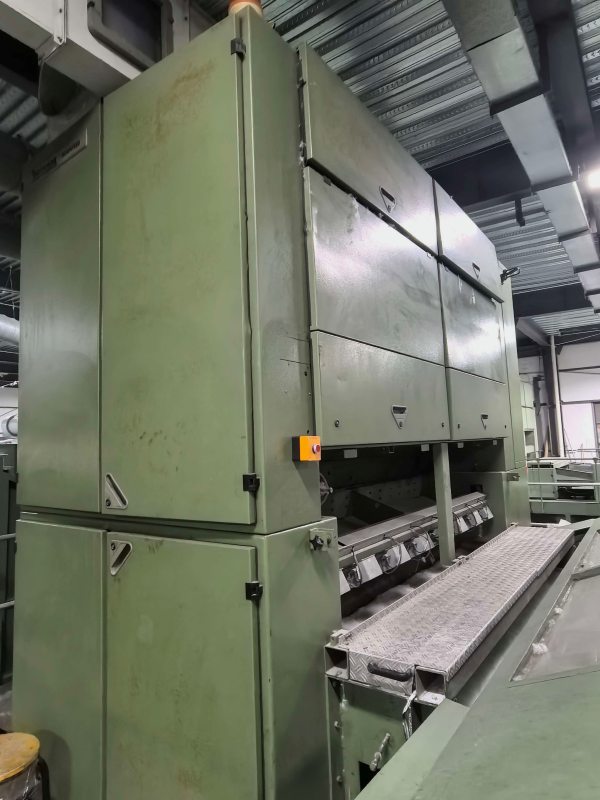

Vibrating Chute Feeder
Make: Spinnbau
Type: AlphaFeed
with levelling roller, ultrasonic height ctrl
Belt Weigher
Make: Spinnbau
Type: ME-2
scale B2.2-150kg, 2xBR200 sensors
Carding:

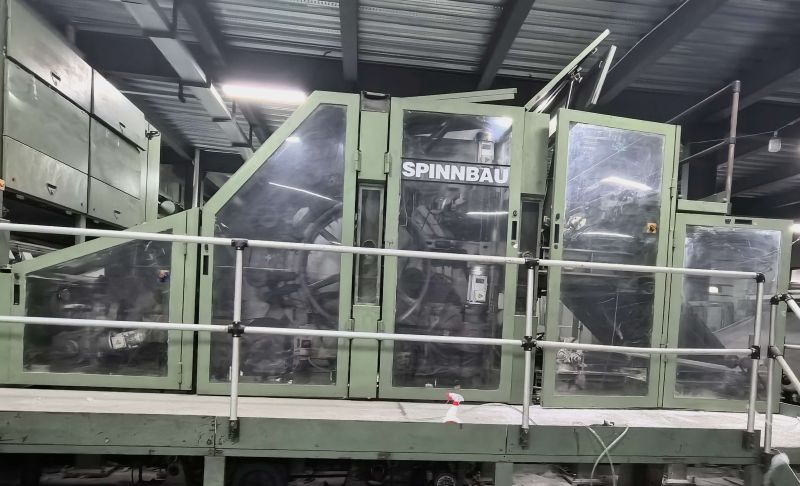

Double-cylinder Card
Make: Spinnbau
Type: MultiCard MC 3-5 PC
Working width: 2.500mm
Setup: twin cyl Φ1500mm
Double doffer w/randomizing
del. 160m/min
Cylinder speed: 600-1000 rpm adjustable

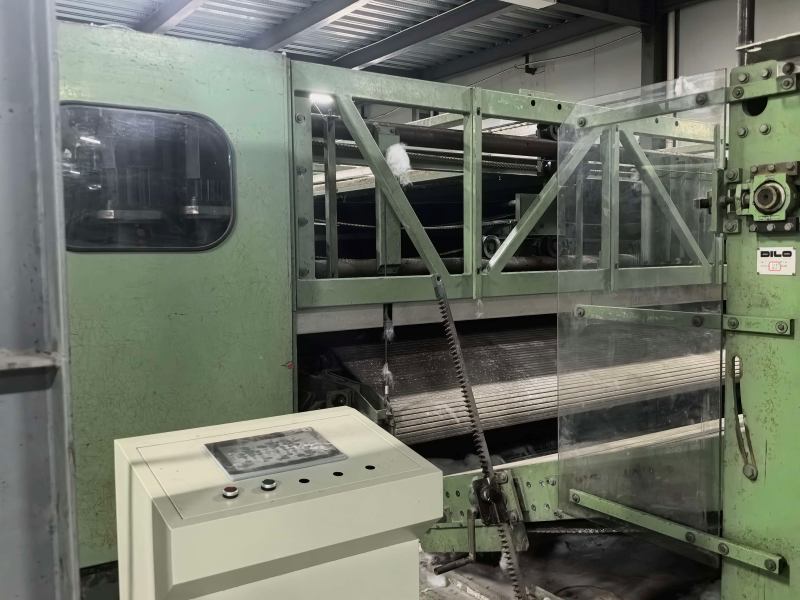

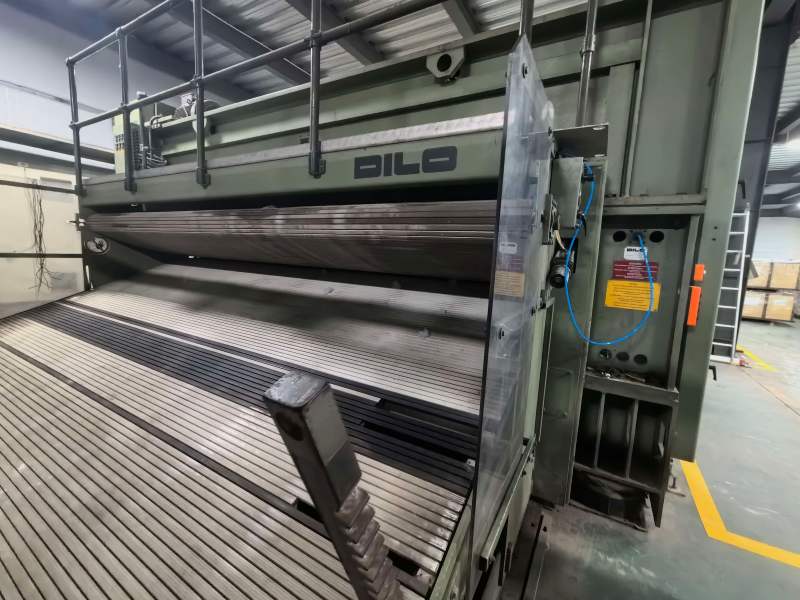

Crosslapper:
Make: Dilo
Type: DILOLAYER DLS 30/50
Working width: 3.800mm / 3.600mm
Carriage: 130m/min
Needling:

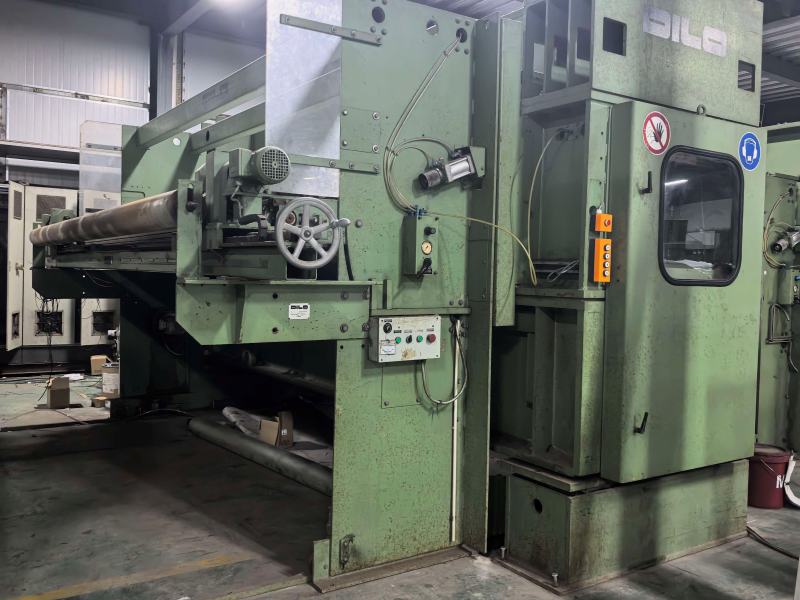

Pre-Needle Loom
Make: Dilo
Type: DI-LOOM OD-II A 50
Working Width: 2.500mm
with CBF
2 boards

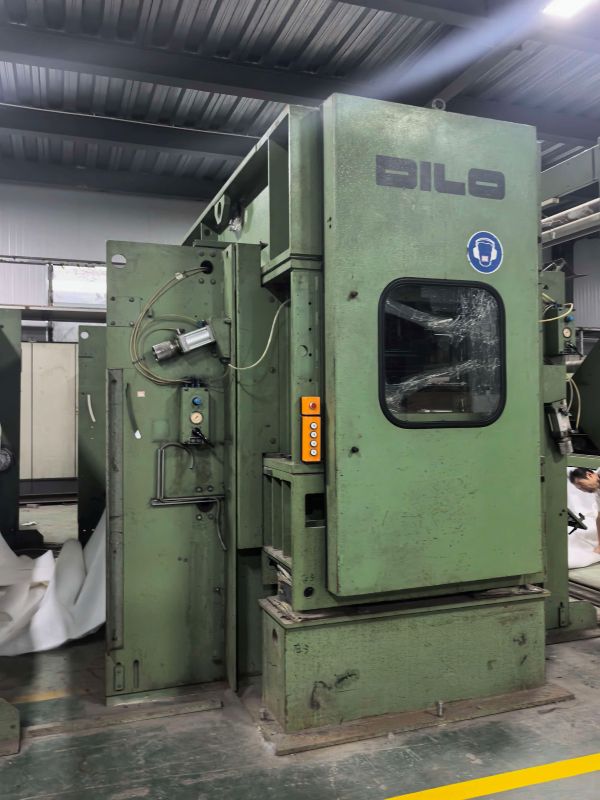

Main Needle Loom
Make: Dilo
Type: DI-LOOM OD-II B+45
Working Width: 2.500mm
2 boards

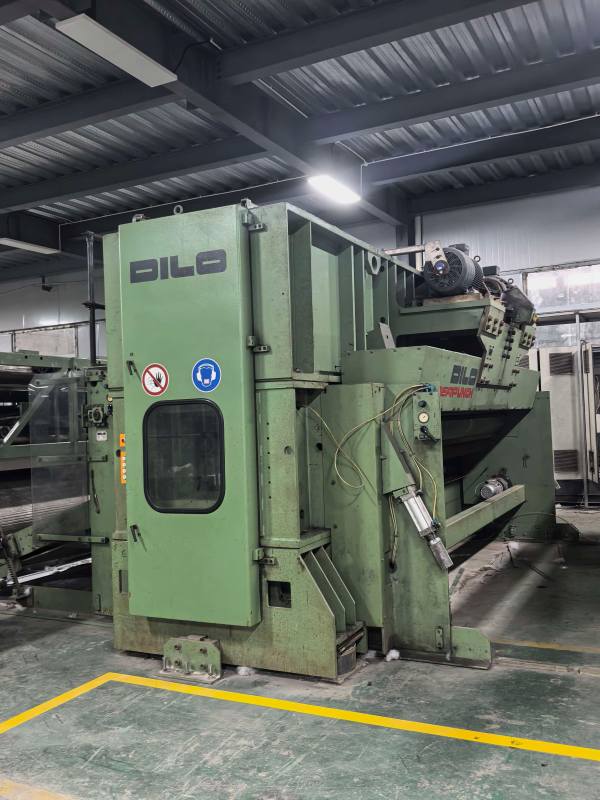

Finish Needle Loom
Make: Dilo
Type: DI-LOOM UD-II B+45
Working Width: 2.500mm
1 board
End of line:

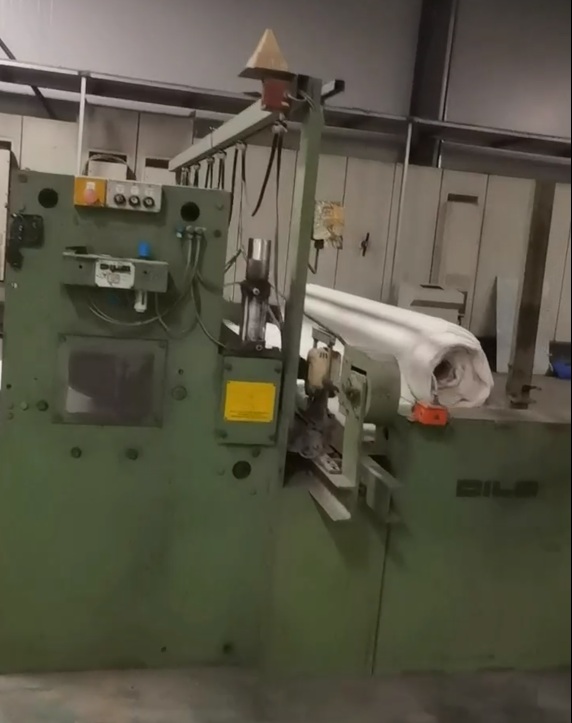

Winder
Make: Dilo
Type: TBD
Working width: 2.500mm
Electrical:
Main Control (Panel)
Make: Spinnbau + Siemens
Type: SIMATIC S7 + MP277
